Xiaomi Smart Band 8 Checkered Strap
Specifications
Buckle materialStainless steel
Adjustable length135~210 mm
Strap materialCalfskin leather
ColourGreen
Package contents
Checkered strap ×1, User manual ×1
Installation instructions

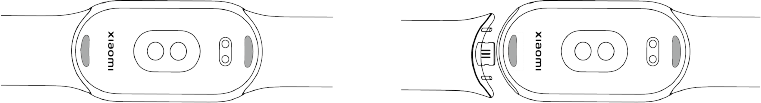

Quick-release mechanism diagram
Xiaomi Smart Band 8 Double Wrap Strap
Specifications
Buckle materialStainless steel
Adjustable length140~180 mm
Strap materialCalfskin leather + PU leather (inner strap)
ColourBlack and white
Package contents
Double wrap strap ×1, User manual ×1
*The black/white joint part of the double wrap leather strap adopts a split design, which adds a unique aesthetic touch and does not indicate any product quality issues. Wearing the strap too loosely may result in deviations in heart rate, blood oxygen, and sleep data.
Installation instructions
Double wrap strap instructions
Xiaomi Smart Band 8 Chain Strap
Specifications
Buckle material Stainless steel
Adjustable length135~200mm
Strap materialStainless steel + calfskin leather
ColoursBlack, White
Package contents
Chain strap ×1
User manual ×1
*The strap can be adjusted to fit the wrist by removing stainless steel or leather links. Wearing the strap too loosely may result in deviations in heart rate, blood oxygen, and sleep data.
Installation instructions
Chain strap instructions
Xiaomi Smart Band 8 Braided Strap
Specifications
Buckle materialStainless steel
Adjustable length140~210mm
Strap materialNylon + leather
ColoursYellow, Green
Package contents
Braided strap ×1
User manual ×1
Installation instructions
Quick-release mechanism diagram
Xiaomi Smart Band 8 Pendant
Specifications
Strap materialPC, stainless steel, wax cord
Package contents
Metal cover ×1
Quick-release metal accessory ×2
Wax cord ×1
User manual ×1
Installation instructions
Pendant installation and removal
Pendant metal accessory and cover installation:
1. Fit the quick-release metal accessories onto the curved ends of the band.
2. Position the metal cover close to the back of the band body to allow them to engage magnetically
Removal:
1. Gently pull up the metal cover. Rotate to expose the back of the band body.
2. Press the quick-release buttons on both sides of the band body and pull the metal accessories to separate them from the band body.

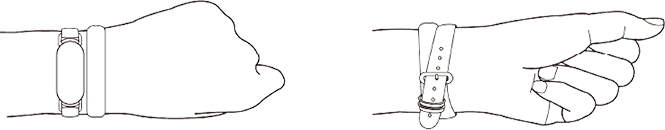

Fastening the pendant clasp:
1. Hold the two ends of the pendant clasp as illustrated in the image.
2. Align the recessed spot on the right side of the pendant clasp with the groove on the left side and slide it in.
3. Whilst pressing both ends, rotate the right side of the pendant clasp to fasten together.
Removal:
1. Hold the two ends of the pendant clasp as illustrated in the image below
2. Press and rotate the right side of the clasp to unlock it.
3. Pull outwards to separate the two ends of the pendant clasp.
Xiaomi Smart Band 8 Running Clip
Specifications
Strap materialPC, TPU
Applicable scenariosRunning, Cycling
Supported data itemsStep count, stride, cadence (SPM), pace, distance, cadence-pace ratio, ground contact time, flight time, flight ratio, pronation and supination, footstrike pattern, impact force, cadence (RPM)
Package contents
Running Clip ×1
User manual ×1
Pry tool ×1
(The band body is not included and should be purchased separately)
Installation instructions
Running Clip installation and removal
Installation:
1. Press and fit the band body into the Running Clip cavity in the correct direction.
2. Press the tab on the bottom of the Running Clip to open the clip.
3. Insert the clip between the shoe and the shoelaces, and press the clip to secure it.
*The watch face must to be oriented towards you when attaching the Running Clip. Incorrect orientation will affect the accuracy of the data.
Note:
We recommend that you run an appropriate number of sections of your shoelaces through the lace clip to secure it. The lace clip may become loose if fastened with too few sections and may break away if fastened with too many sections.
Removal:
1. Press the tab on the bottom of the Running Clip to open the clip. Remove the Running Clip from the shoelaces.
2. Gently insert your fingertip or a pry tool underneath the top or bottom of the Running Clip. Hold the recessed areas of the band body and pull it up
3. Separate the band body from the Running Clip.
Quick-release mechanism diagram
Xiaomi Smart Band 8 Strap
Specifications
Buckle materialMetal
Adjustable length135~210mm
Strap materialTPU
ColoursSunrise Orange, Aqua Blue
Package contents
TPU strap ×1
User manual ×1
Installation instructions
Quick-release mechanism diagram
